UV Metallizing

What is Metallizing?

We are an integrated mold manufacturer with injection Mold designing and manufacturing capabilities which include reverse engineering and prototyping.

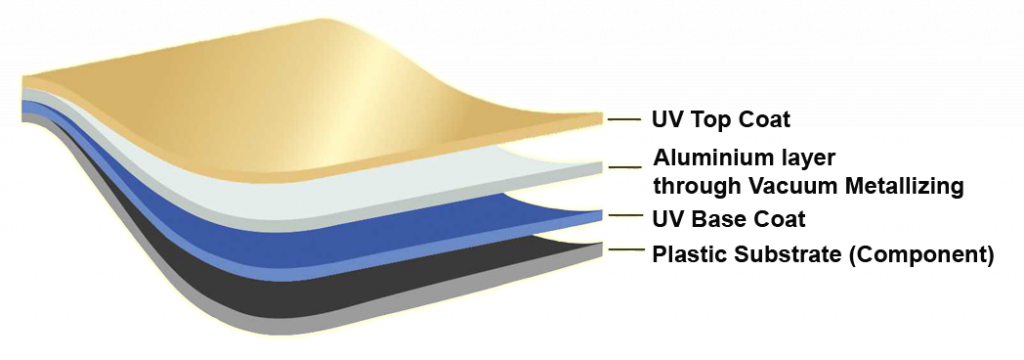

1. First layer is the base coating which is used for adhesion.
2. Second layer is the aluminium metal under vacuum.
3. Third layer is the top coating which is used for protection of aluminium film and is scratch resistant.

What is UV Metallizing?

UV Spray and plastic Metallizing is the combination of UV painting(UV curable) and vacuum evaporation of aluminium coating. It is an ideal plastic materialssurface treatment.

What is Electroplating?

It is a process of depositing a thin layer of desired metal over a metal object with the help of acid. We don’t do Electroplating or chrome plating.

UV Line

State of art metallizing UV line imported from China, capable of producing 2.5 million parts per month.

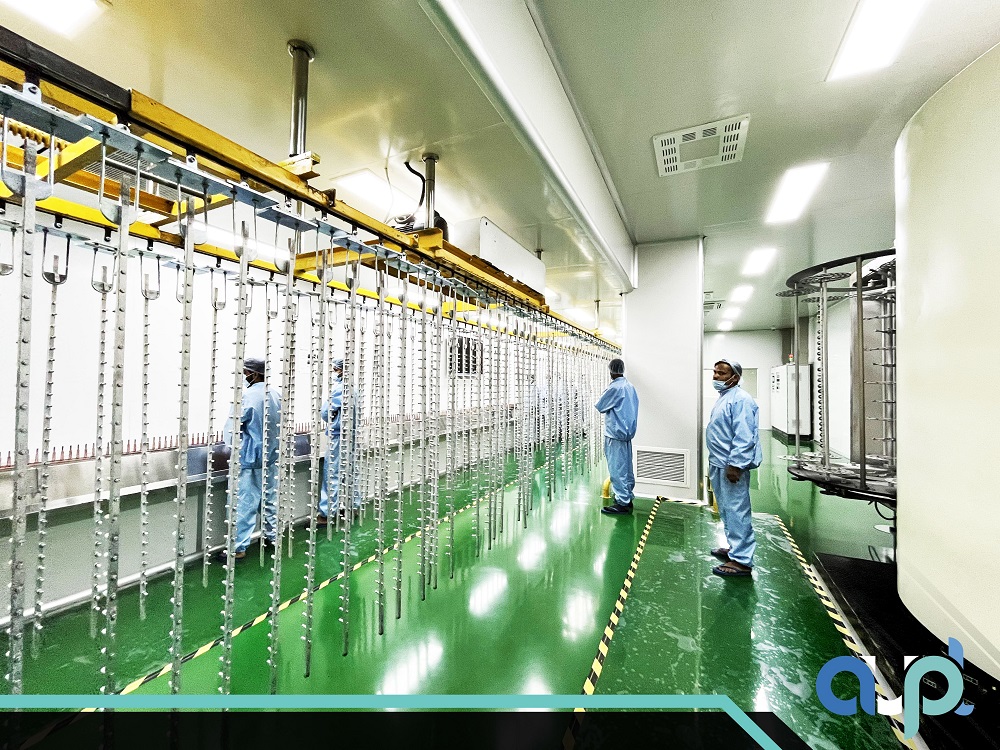

UV Metallizing Area

We have a fully automated, PLC controlled UV Metallizing facility with clean room to produce superior quality metallization on plastics such as PP, ABS, Nylon and Polycarbonate. Our monthly production capacity is 25 lakhs parts. We can produce a range of different & vibrant colors.

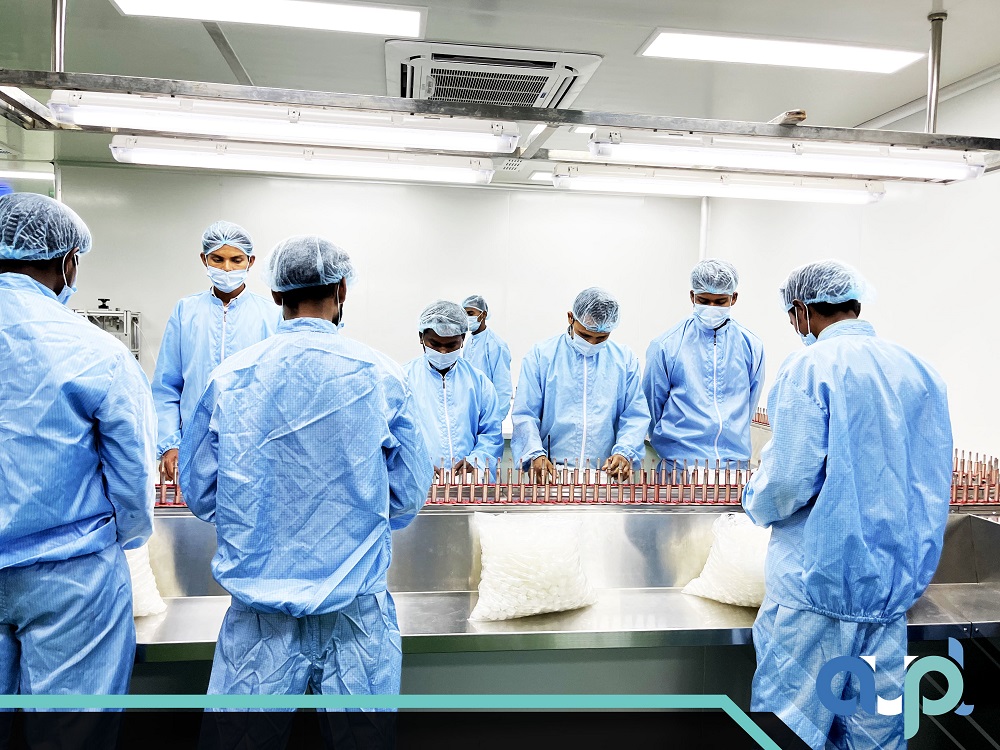

Inspection Area

We have stringent quality control tests to pass the most strict customer norms and provide them with superior quality products.

Frequently Asked Question

For Mold manufacturing (information needed from customer)

First time sampling is free of cost. After that sampling charge will be ₹3000 for 10pcs.

Fixture is plastic component which holds the article during UV Metallizing process. It includes cost of mould, plastic and moulding charge.

Fixture Charges per DIA
» Up to 40mm DIA : ₹20,000
» 40 to 70mm DIA : ₹30,000
» 70 to 100mm DIA : ₹40,000
» 100 to 125mm DIA : ₹50,000

(50% has to be paid by Client and rest 50% would be beared by Aadinath UVPack)

Substrates over which we do metallizing:-
» Plastics (Mainly Polycarbonate, ABS, PP, SAN)
» Aluminium (Without Oil & Wax)
» Glass
Substrates over which we don’t do metallizing:-
» High Density Plastics (HDP)
» High Impact Plastics (HI)

Below 40mm Diameter : 40,000 pcs
Between 40-90mm Diameter : 25,000 pcs
Between 90-140 Diameter : 15,000 pcs

In the range of 70° C.

It leads to:

  • More Effective Production Scheduling.
  • Inventory management & Reduction in excess stock.
  • Increased Customer satisfaction.

Maximum size limit for uv metallization is 120mm Dia and height 50mm.

10 micron to 20 micron.

50% Advance & Balance against the Performa Invoice before delivery.
